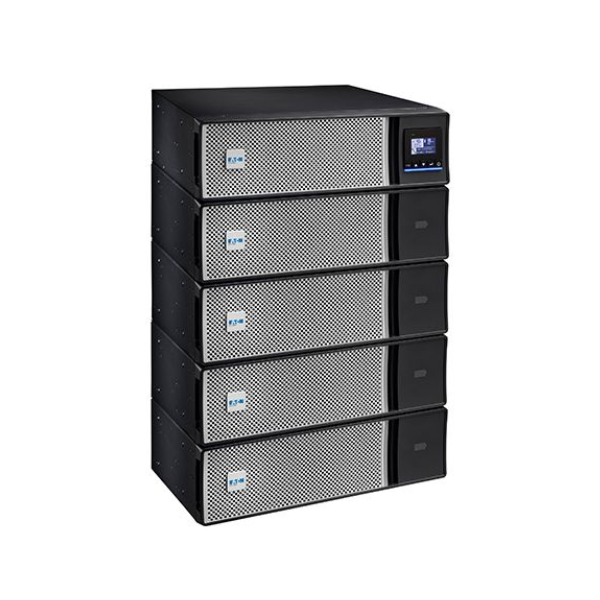

Eaton 5PX Gen2 UPS 3000 VA, Rack/tower 3U, 230V, 8 x C13, 2 x C19 Outlets

Specifications of Eaton 5PX Gen2 UPS 3000 VA, Rack/tower 3U, 230V, 8 x C13, 2 x C19 Outlets

• Output
  • Main Output Voltage: 230 V
  • Maximum configurable power in VA: 3000 VA
  • Maximum configurable power in W: 3000 W
  • Output connection type: 8 x C13 outlets + 2 x C19
  • Output Voltage Range: 230 V (+6%/-10%)
  • Topology: Line-interactive
  • Wave type: Sine wave
• Input
  • Main Input Voltage: 230 V
  • Input Voltage Range: 160-294 V (adjustable to 150 V-294 V)
  • Input Connection Type: C20
  • Network frequency: 47-70 Hz (50 Hz system)
  • 56.5-70 Hz (60 Hz system)
  • 40Hz in low sensitivity mode
• Batteries & Runtime
  • Battery type: Lead-acid battery
  • Battery Range: 12 V / 9 Ah
• Communications & Management
  • Communication: USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)
  • User Interface: Multilingual graphical LCD display
• Dimension HxDxW: 438 x 129 x 483 mm
• Weight: 31.1 kg

For wholesale and export pricing inquiries regarding the Eaton 5PX Gen2 UPS, please do not hesitate to contact us.
