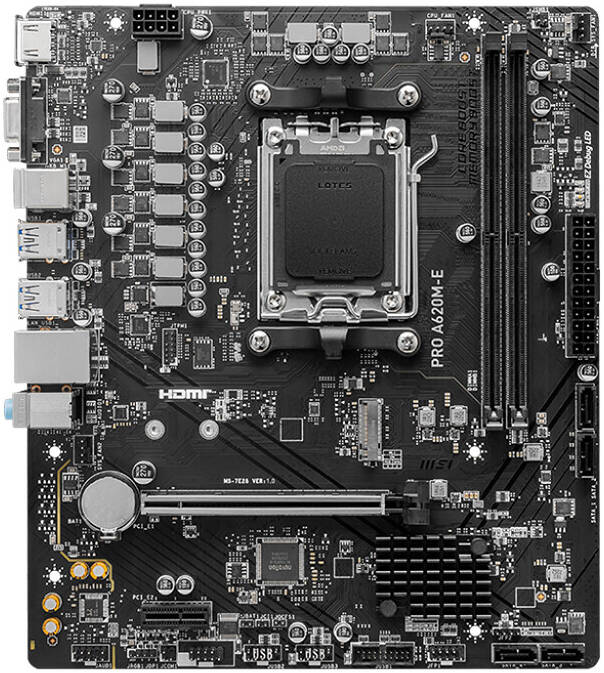

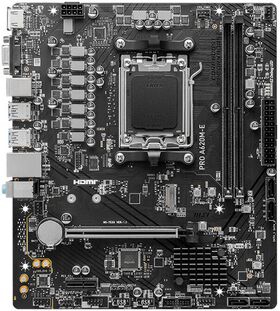

MSI PRO A620M-E Micro-ATX AM5 Motherboard

Specifications of MSI PRO A620M-E Micro-ATX AM5 Motherboard

• AMD Socket AM5
• AMD A620 Chipset
• Form factor MATX
• 2x DDR5, Max. 96 GB
• Internal I/O Connectors
  • 1x Power Connector(ATX_PWR);
  • 1x Power Connector(CPU_PWR);
  • 1x CPU Fan;
  • 2x System Fan;
  • 2x Front Panel (JFP);
  • 1x Chassis Intrusion (JCI);
  • 1x Front Audio (JAUD);
  • 1x Com Port (JCOM);
  • 1x R GB LED connector(JR GB);
  • 1x TPM pin header(Support TPM 2.0);
  • 4x USB 2.0 ports;
  • 2x USB 3.2 Gen1 Type A ports
• Graphics Device
  • 1x HDMI™-
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz (Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.);
  • 1x VGA-
  • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
• Expansion Slots
  • 1x PCI-E x16 slot;
  • 1x PCI-E x1 slot;
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Memory Slots Support
  • 2x DDR5, Maximum Memory Capacity 96 GB;
  • Memory Support:- DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz;
  • Max. overclocking frequency:-
  • 1DPC 1R Max speed up to 6000+ MHz;
  • 1DPC 2R Max speed up to 6000+ MHz;
  • Supports Dual-Channel mode;
  • Supports non-ECC, un-buffered memory;
  • Supports AMD EXPO
• Sound
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• USB
  • 2x USB 2.0 (Rear);
  • 4x USB 2.0 (Front);
  • 4x USB 3.2 Gen1 Type A (Rear);
  • 2x USB 3.2 Gen1 Type A (Front)
• Ethernet
  • Realtek® RTL8111H Gigabit LAN

If you have wholesale or export pricing inquiries for the MSI PRO A620M-E Micro-ATX AM5 Motherboard, don't hesitate to get in touch with us.
